Installing a Wider & Stronger Pelmet Support Board (optional)

Adrian Biffen, Senior Partner

With the Roman blind down, the winder mechanism is removed, and the pelmet header board is replaced with a wider and stronger piece. The brackets were also upgraded.

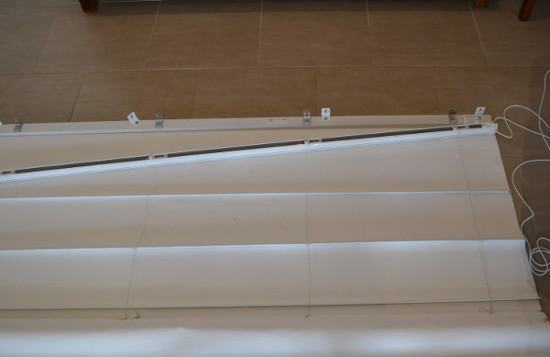

Roman blind on floor with disconnected headrail winder mechanism

The Roman Blind lying on floor, showing disconnected headrail winder mechanism. The four cords had to be fully unwound from headrail rod, then cut off.

The headrail winding mechanism is to be replaced with the motorized roller, performing the same action as the rotating rod inside the headrail (with functional remote control).

We are also replacing the header board with a stronger, wider piece, but that may not be necessary for your project, depending on the strength and size of your header board.

Picture 5

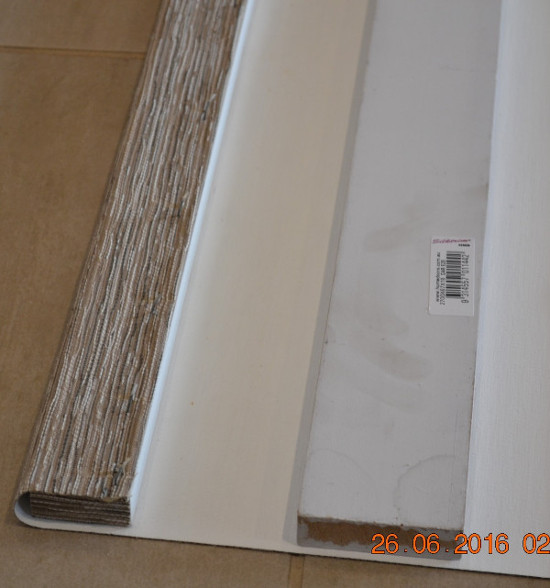

Roman blind material was removed from pelmet board (it was glued and stapled)

Roman Blind material was removed from pelmet board (it was glued and stapled to top of pelmet, at left of picture.

This pelmet board was not wide enough (1.5 inch, 38mm) for new brackets, so it was replaced with wider board (~2.7 inch, 68 mm).

Picture 6

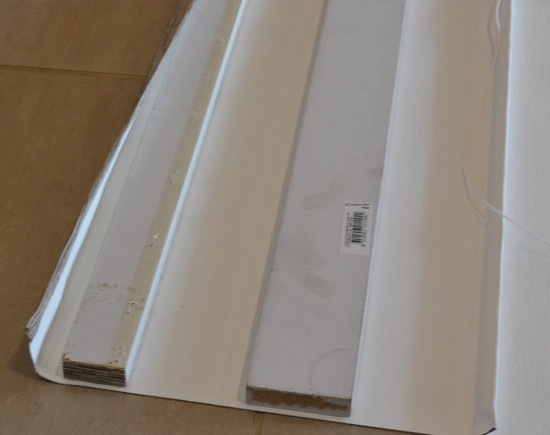

Roman blind original pelmet board was replaced

Removal of original pelmet header board. New board is on right, original board on left.

Picture 7

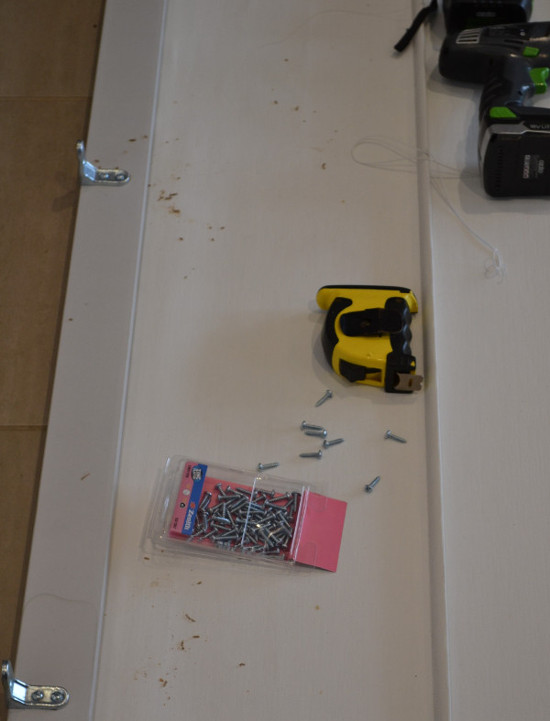

Roman blind header board was attached to blind fabric, with new mounting brackets

New, wider pelmet header board was attached. New mounting brackets were installed to carry extra weight.

Picture 8
